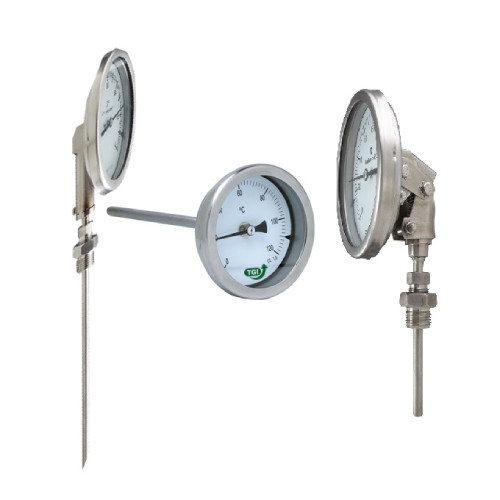

Temperature Gauges

Dial Size :DN40 / DN50 / DN63 / DN80 /DN100 / DN125 / DN150 / DN250

Temp. Range :-100 to 600°C

Accuracy :± CL 1

Standard :EN13190

Mounting :Bottom / Center Back / Every angle Clamp with External Zero Adjustment

Process Connection :1/4" / 3/8" /1/2"-BSP / NPT, Special Connections

Ingress Protection :IP65, Hermetically Sealed Encloser

Execution :Dry / Fillable

Sensing Element :Bimetal Helix

Case & Bezel :SS304/316, - Stem / Probe TIG welded with Case

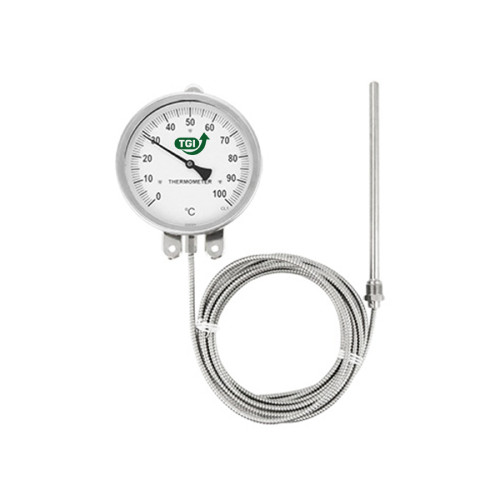

Dial Size :DN100 / DN125 / DN150 / DN250

Temp. Range :-100 to 650°C

Accuracy :± CL 1

Standard :EN13190

Mounting :Bottom/Center Back/Every angle Clamp with External Zero Adjustment

Process Connection :1/4",/3/8",/1/2"-BSP / NPT, Option with Anti Vibration spring

Ingress Protection :IP65 , Options Hermetically Sealed Encloser

Execution :Dry / Fillable

Sensing Element :Bourdon Tube with Temperature Compensation

Case & Bezel :SS304/316, - Stem / Probe TIG welded with Case

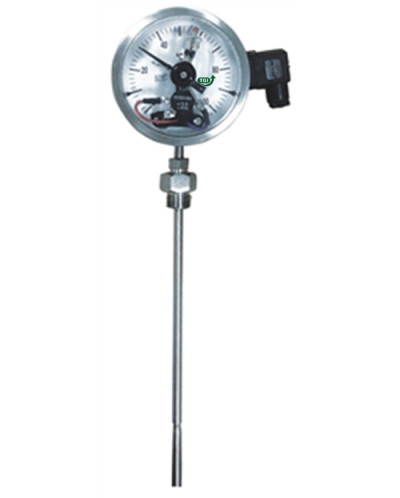

Dial Size :DN100 / DN150, Window- standard Glass

Temp. Range :-100 to 650°C

Accuracy :± CL 1

Standard :EN13190

Mounting :Bottom/Center Back/Every angle Clamp with External Zero Adjustment

Process Connection :1/4",/3/8",/1/2"-BSP / NPT, Option with Anti Vibration spring

Ingress Protection :IP65 , Hermetically Sealed Encloser

Execution :Dry / Fillable

Electric Contact :Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC

Sensing Element :Bourdon Tube with Temperature Compensation, H.V

Case & Bezel :SS304/316, - Stem / Probe TIG welded with Case

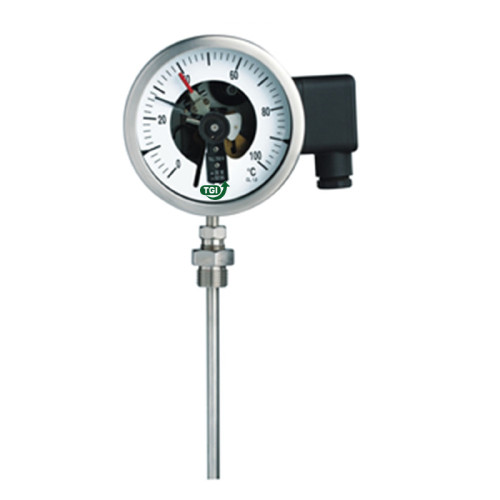

Dial Size :DN100 / DN150, Window- Doom Glass

Temp. Range :-100 to 650°C

Accuracy :± CL 1

Standard :EN13190

Mounting :Bottom/Center Back/Every angle Clamp with External Zero Adjustment

Process Connection :1/4",/3/8",/1/2"-BSP / NPT, Option with Anti Vibration spring

Ingress Protection :IP65 , Hermetically Sealed Encloser

Execution :Dry / Fillable

Electric Contact :Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC,

Sensing Element :Bourdon Tube with Temperature Compensation

Case & Bezel :SS304/316, - Stem / Probe TIG welded with Case
