Diaphragm Seals

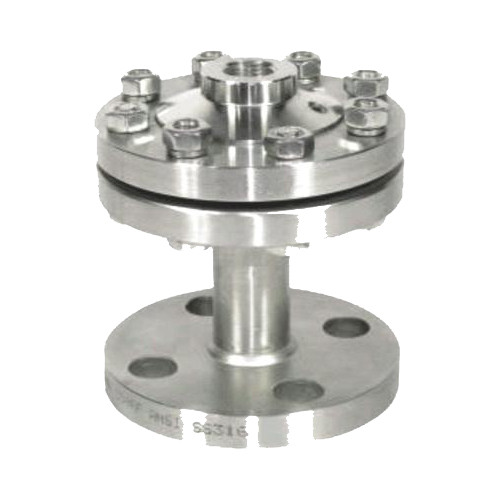

Range :-1 - 0 to 0-21 bar / -1 - 0 to 0- 70 Bar / 0-100 to 0-400 bar

Top Chamber :SS316 / SS304

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Process Connection :I Section with Flange, size & class as per standard

Bottom Chamber :(pipe+flange+bottom ring) : SS316L/MONEL/PVC

Diaphragm :SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum

Sealing Gasket :PTFE / METAL GASKET

Special Requirements :(1) PTFE Lining / PTFE Coating (2) Capilary, Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin /Food Grade Oil / Syltherm

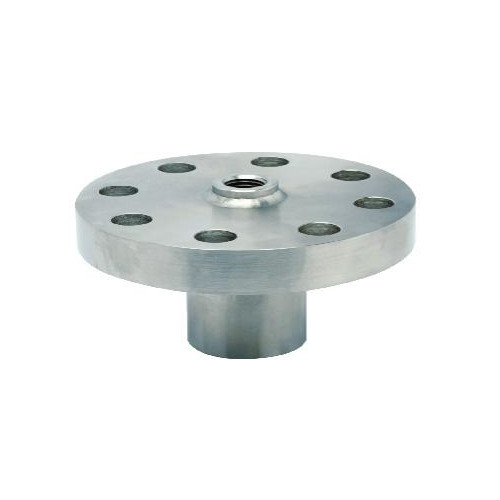

Pressure Ranges :-1 - 0 to 0-250 bar

Ingress Protection :1/4" / 1/2" - BSP / NPT (F)

Process Connection :Extension Bar with Mounting Flange, Flange Size and Class as per Standard Requirement

Flange & Ext. Material :SS316/SS304/MONEL/INCONEL

Diaphragm :SS316L / Monel / Inconel / Hastelloy - C / PTFE / Tantalum

Extention Neck Length :As per requirement

Special Requirements :(1) PTFE Coating (2) Capilary, capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin /Food Grade Oil / Syltherm

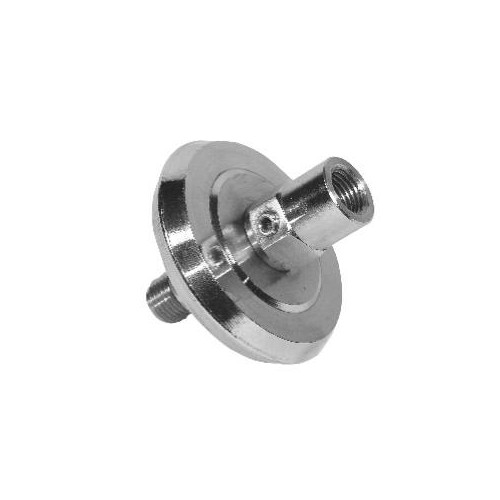

Pressure Ranges : -1 - 0, 0-1 to 0- 70 Bar (OD62.2 & OD 55) / 100 < 250 Bar (OD46.5) /250 <600 bar (OD34.5) / 600<1000 bar (OD 28 )

Top Chamber :SS316 / SS304

Bottom Chamber :SS316L / Monel / Inconel / Hastelloy- C

Diaphragm :SS316L / Monel / Inconel / Hastelloy - C / Tantalum

Instrument Connection :1/4"/ 3/8"/ 1/2" -BSP /NPT (F)

Process Connection :1/4",3/8",1/2" - BSP /NPT- ( M /F) / Special Connections

Sealing Liquid :Silicon Oil / Glycerin / Food Grade Oil / Syltherm

Top & Bottom Chamber :Welded Construction

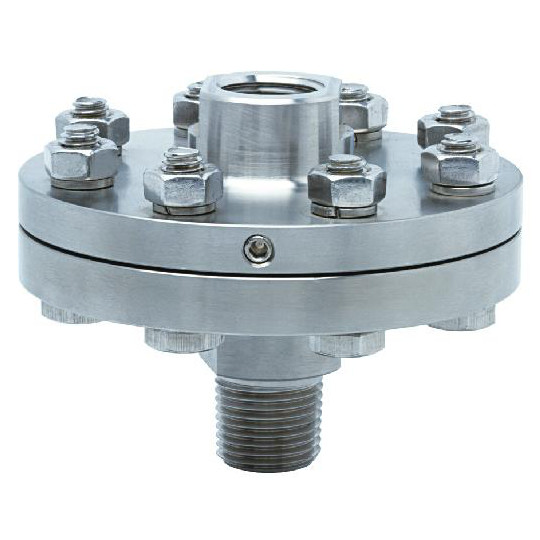

Pressure Ranges :-1 - 0, 0-1 to 0- 70 Bar (OD98) / 0-100 to 0-250 bar (OD80) / 0-250<0-400 bar(OD110)

Top Chamber :SS316 / SS304

Bottom Chamber :SS316L / Monel / Inconel / PVC

Diaphragm :SS316L / Monel400 / Inconel600 / Hastelloy - C 276 / Tantalum / PTFE

Instrument Connection :1/4", 3/8", 1/2" -BSP / NPT (F)

Process Connection :1/4", 3/8", 1/2" - BSP /NPT- (M/F)

Sealing Liquid :Silicon Oil / Glycerin / Food Grade Oil / Syltherm

Option :Capilary, Capilary with Armour tube

Top & Bottom Chamber :Made from solid Bar / Forged Bar

Pressure Ranges :-1 - 0, 0-1 to 0- 25 Bar

Top Chamber :SS316 / SS304

Bottom Chamber :SS316L / Monel / Inconel / PVC

Diaphragm :SS316L / Monel400 / Inconel600 / Hastelloy -C 276 / Tantalum / PTFE

Instrument Connection :1/4", 3/8", 1/2" -BSP / NPT (F)

Process Connection :1/4", 3/8", 1/2" - BSP /NPT- (M /F)

Sealing Liquid :Silicon Oil / Glycerin / Food Grade Oil / Syltherm

Option :Capilary with Armour tube

Top & Bottom Chamber :Made from solid Bar with Steel Ring / SS / Metal Ring

Pressure Ranges :-1 - 0, 0-1 to 0- 25 Bar

Top Chamber :SS316 / SS304

Bottom Chamber :SS316L

Diaphragm :SS316L

Instrument Connection :1/4" BSP / NPT (F)

Process Connection :1/4"- BSP / NPT- ( M /F)

Sealing Liquid :Silicon Oil / Glycerin / Food Grade Oil / Syltherm

Top & Bottom Chamber :Welded Construction

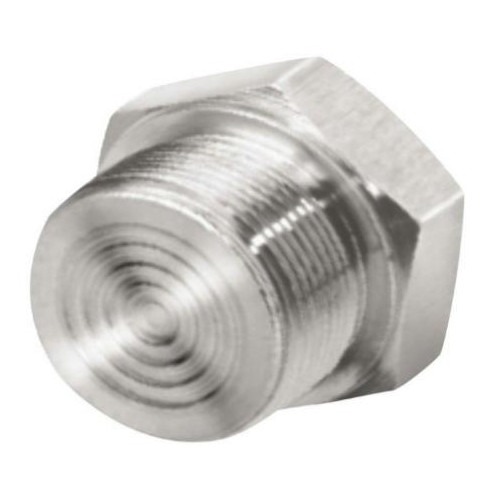

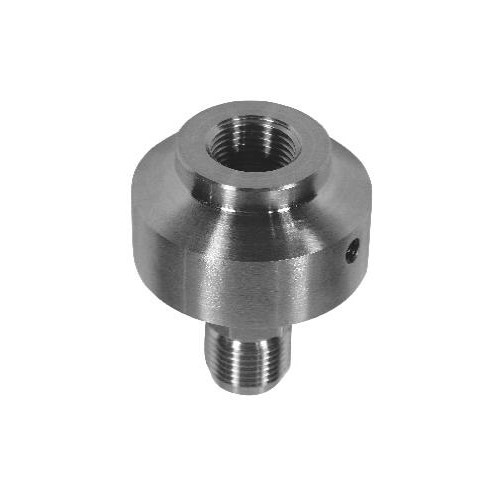

Pressure Ranges :0-4 to 0- 600 Bar

Body :SS316 / SS316L

Diaphragm :SS316L

Instrument Connection :1/4"/ 3/8''/ 1/2''- BSP / NPT (F)

Process Connection :1/4"/ 3/8''/1/2'' - BSP /NPT , (M /F)

Sealing Liquid :Silicon Oil / Glycerin / Food Grade Oil / Syltherm

Seal :Diaphragm Seal body made from one solid bar,

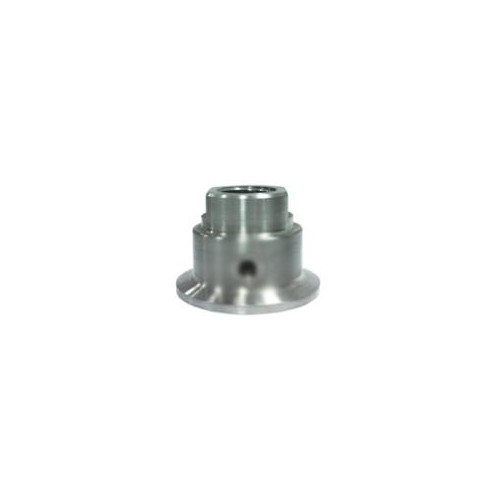

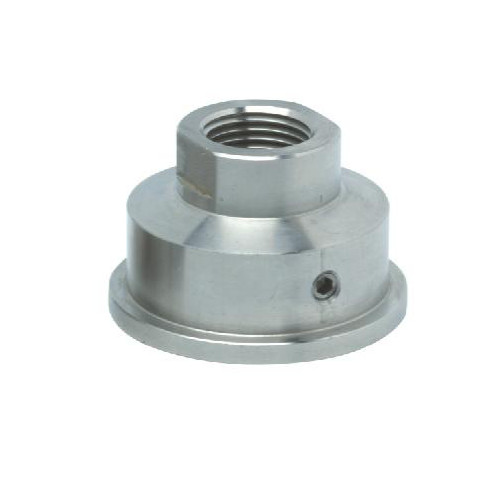

Pressure Ranges :1 - 0 to 0- 40 Bar

Top Chamber :SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50) - Triclamp Type

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L

Sealing Gasket :SILICON

Sealing Liquid :Food Grade Oil

Option :Suitable Size Triclamp, Bottom Matting Part & Gasket

Pressure Ranges :1 - 0 to 0- 40 Bar

Top Chamber :SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50)- Female Type

Union Nut :SMS / DIN -1" (DN25) ,1.5" (DN40), 2" (DN50)

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L

Sealing Gasket :SILICON

Seal Filling Liquid :Food Grade Oil

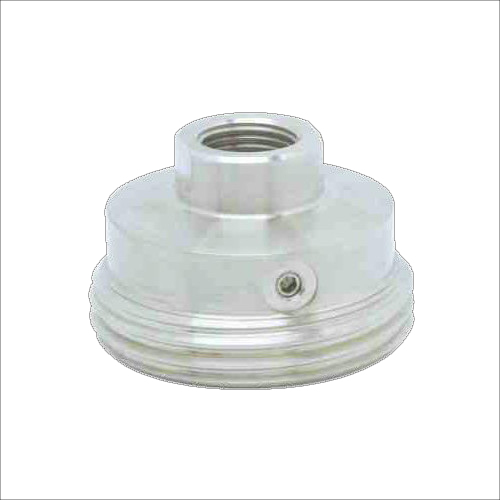

Pressure Ranges :1 - 0 to 0- 40 Bar

Top Chamber :SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50)- Male Type

Union Nut :SMS / DIN -1" (DN25) ,1.5" (DN40), 2" (DN50)

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L

Sealing Gasket :SILICON

Seal Filling Liquid :Food Grade Oil

Pressure Ranges :0-4 to 0-40 bar Diaphragm

Chamber :SS316

Floating Ring :SS304

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L

Seal Filling Liquid :Silicon Oil

Options :Antivibration spring- Striaght / 90° Angle Type

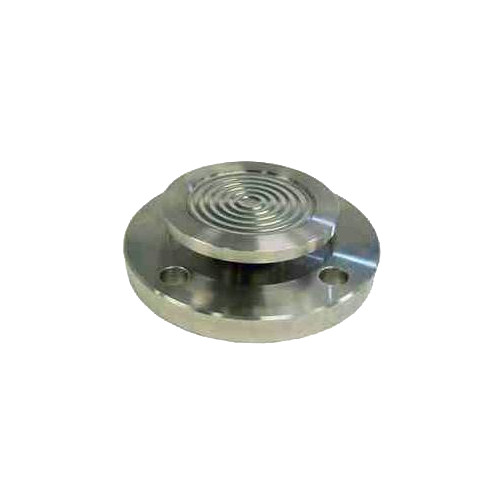

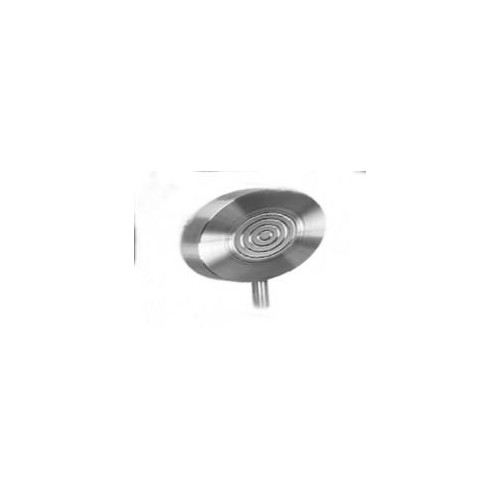

Pressure Ranges :0-1 to 0-250 bar

Diaphragm Chamber :Suit to standard size flanges

MOC :SS316L

Diaphragm :SS316L / Monel400 / Inconel600 / Hastelloy -c 276

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Special Requirements :(1) Diaphragm with PTFE Coating (2) Seal with Capilary / armour tube /PVC armour Tube (3) Sealing Liquied - Silicon Oil / Glycerin / Syltherm

Pressure Ranges :0-6 to 0-250 bar

Top Chamber :SS316/SS304

Bottom Chamber :As per Standard pipe size ( Weld on Pipe )

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L / Monel400 / Inconel600 / Hastelloy -C

Sealing Gasket :PTFE / METAL GASKET

Special Requirements :(1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm

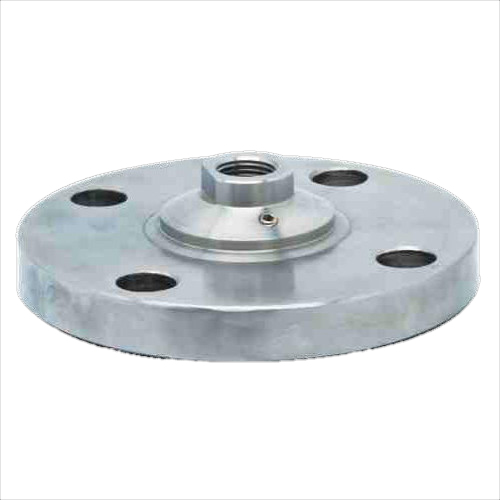

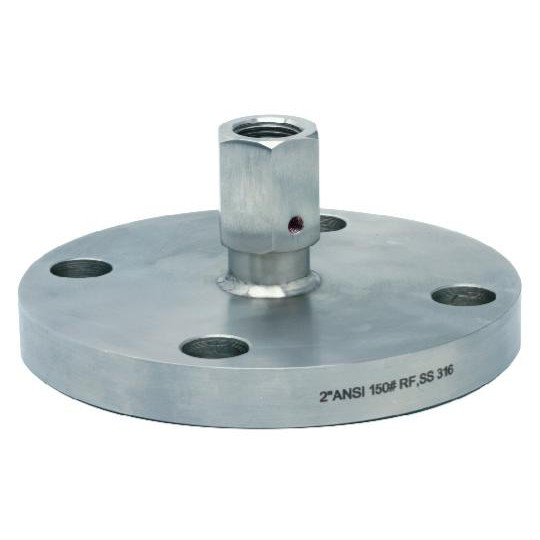

Pressure Ranges :-1 - 0 to 0-250 bar

Flange Size Class :As per standard

Flange Material :SS316/SS304/Monel / other

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum

Special Requirements :(1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm

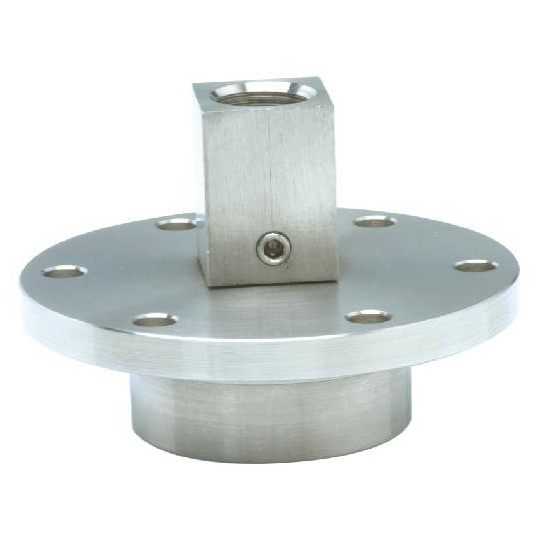

Pressure Ranges :-1 - 0 to 0-250 bar

Flange Size Class :As per standard

Flange Material :SS316/SS304 / Monel / other

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum

Special Requirements :(1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm

Pressure Ranges :-1 - 0 to 0-250 bar

Flange Size Class :As per standard

Flange Material :SS316/SS304/Monel / other

Instrument Connection :1/4" / 1/2" - BSP / NPT (F)

Diaphragm :SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum

Special Requirements :(1) PTFE Coating on diaphragm (2) Capilary with armour tube (3) Sealing Liquied - Silicon Oil/ Glycerin / Syltherm
