Accessoriess

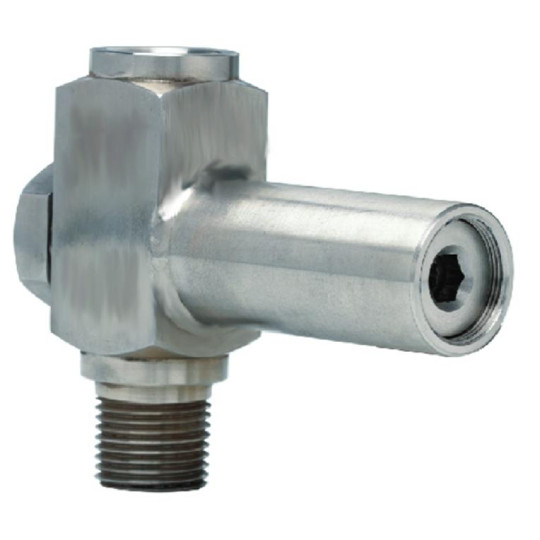

Type :2 Way / 3 Way

Material :AISI316SS /AISI304SS

Instrument Connection :1/2" NPT (F)[1/2" NPT (F) x 2 Nos for 3 Way]

Process Connection :1/2" NPT (M)

Handle :AISI 304 SS with Backelite cover

Gaskets / Seals :PTFE

Maximum working pressure :100 bar

Maximum working temperature :180°C

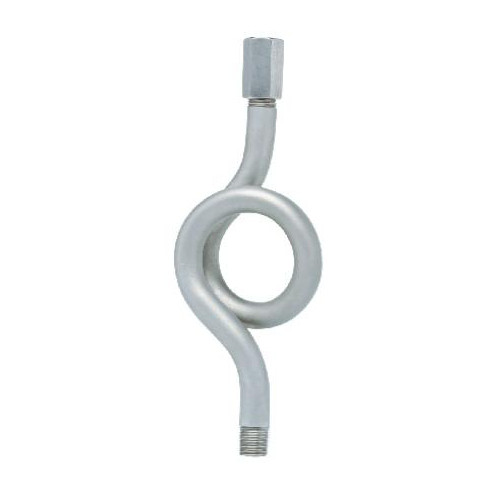

Type :Pig Tail & U Type syphons

Material :SS316,SS316L SS304, CS, BRASS

Instrument Connection :1/4" / 3/8" /1/2" , BSP / NPT (F)

Pipe Size & Schedule :1/4" /3/8" /1/2" , 40/ 80 / 160

Connection Type :Threaded / Weld In / Flange end / Sanitary Connection

Process Connection :1/4" /3/8" /1/2" , 40/ 80 / 160

Maximum working pressure :As per PT chart

Maximum working temperature :As per PT chart

Options :Epoxy Coating / IBR Certification /Tag Plate / special connections

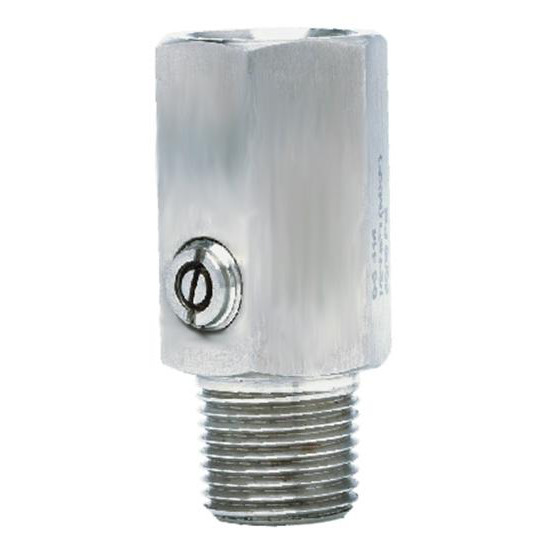

Type :Flow Adjustable Screw

Material :SS304 / SS316 /SS316L / BRASS

Instrument Connection :1/4"/3/8"/ 1/2", BSP /NPT (F)

Process Connection :1/4"/3/8"/ 1/2", BSP /NPT (M)

Gaskets / Seals :Viton

Maximum working pressure :400 bar

Maximum working temperature :180°C

Type :Bellow / Piston

Material :SS316 /SS316L / Monel

Instrument Connection :1/4"/3/8"/ 1/2", BSP /NPT / M20 (F)

Process Connection :1/4"/3/8"/ 1/2", BSP /NPT / M20 (M)

Gaskets / Seals :Viton

Maximum working pressure :600 bar

Maximum working temperature :180°C

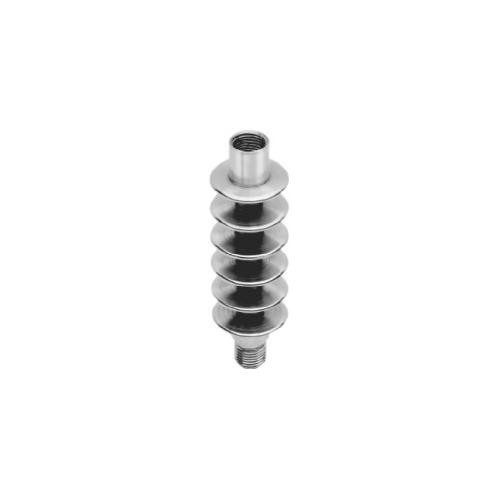

Type :Fin Type/ Perforated Type / Capillary Type

Material :SS316 /SS316L / Monel

Instrument Connection :1/4"/3/8"/ 1/2", BSP /NPT / M20 (F)

Process Connection :1/4"/3/8"/ 1/2", BSP /NPT / M20 (M)

Maximum working pressure :1000 bar

Maximum working temperature :300°C

Type :To suit all standard flange RF OD

Material Flange facing :Raised Face /RTJ

Flushing Port :1/8" / 1/4" / 1/2"- Plugged

Maximum working pressure :As per Standard Flange Rating

Maximum working temperature :300°C

Options :Nipple / Needle / Gasket
