Pressure Switches

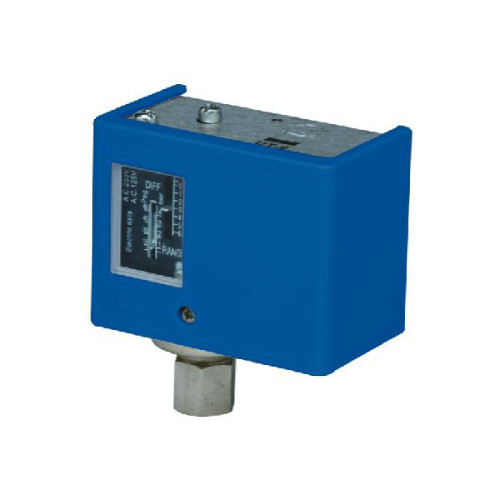

Features :Field Adjustable /Auto Reset / CE Complied / Differential Adjust.

Accuracy :± 1% / CL 1

Repeatability :±1%

Mounting :Bottom / Back Panel

Enclosure :Steel Body( Plated with Plastic Cover )

Sensing Element :PB Bellow

Process Connection :1/4" BSP (F),

Options :3/8",/1/2"-BSP / NPT

Max. Process Temp. :100°C

Ambient Temp. :-10 .. 60°C

Switch Type & Rating :1SPDT , 5A / 220 VAC/10A 24VDC - Micro Switch

Ranges :3 …... 30 bar

Differential :1.5 ….. 12 Bar

Accessories :Mounting Bracket with bolt - Steel Plated

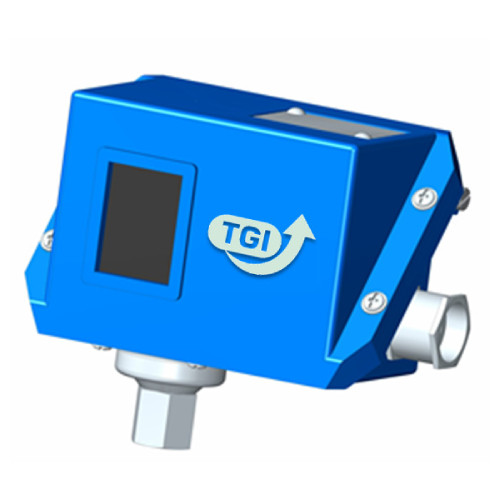

Features :Fixed/Field Adjustable(External) / Differential Adjus.- External / Internal

Accuracy :± 1% / CL 1

Repeatability :±0.5% /CL 0.5, On Raising /On Falling

Mounting :Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure :Die Cast Aluminium -Wheather Proof - IP68

Wetted Parts :Bottom Body , Diaphragm

MOC :SS316/ Monel / Inconel / PTFE

Process Connection :1/4" BSP(F)

Options :3/8", /1/2"-BSP / NPT

Max. Process Temp. :150°C

Ambient Temp. :-20 .. 65°C

Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard -Micro Switch with silver Contact.

Micro Switch :Low/High Dead Band, Hermetically/Environment Sealed/Gold Contact

Ranges :10mbar …..25 bar , -1…. 400mbar

Differential :2mbar ….. 6 Bar

Accessories :Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket

Cable Entry :PG13.5 (std)

Options :3/4 ET / 1/2'' NPT / DIN Conn/ 4pin / 7pin connectors Single / Double Compression Gland- Weather proof - Brass / SS

Features :Fixed/Field Adjustable(External)/Differential Adjustment-External/Internal

Accuracy :± 1% / CL 1

Repeatability :±0.5% /CL 0.5, On Raising /On Falling

Mounting :Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure :Die Cast Aluminium -Wheather Proof -IP68

Wetted Parts :Bottom Body ,Piston

MOC :SS316/ Monel / Inconel / PTFE

Process Connection :1/4" BSP(F)-Standard

Options :3/8",/1/2"-BSP / NPT

Max. Process Temp. :150°C

Ambient Temp. :-20 .. 65°C

Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC -Standard : Micro Switch with silver contact

Micro Switch :Low/High Dead Band, Hermetically/Environment Sealed /Gold Contact

Ranges :Ranges : Above 25 bar …... 250 bar

Differential :0.1 …..25 Bar

Accessories :Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket

Cable Entry :PG13.5 (std)

Options :3/4 ET / 1/2'' NPT / DIN Conn/ 4pin / 7pin connectors Single / Double Compression Gland- Weather proof - Brass / SS

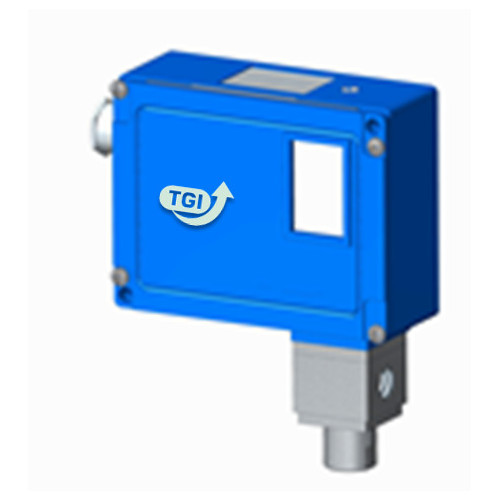

Features :Fixed/Field Adjustable (External)/Differential Adjustment-External/Internal

Accuracy :± 1% / CL 1

Repeatability :±0.5% /CL 0.5, On Raising / On Falling

Mounting :Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure :Die Cast Aluminium - Wheather Proof Design -IP68

Wetted Parts :Body, Diaphragm

MOC :SS316/ Monel / Inconel

Process Connection :1/4" BSP(F) - Standard

Options :3/8",/1/2"-BSP / NPT

Max. Process Temp. :150°C

Ambient Temp. :-20 .. 65°C

Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard : Micro Switch with silver contact

Micro Switch :Low/High Dead Band, Hermetically/Environment Sealed / Gold Contact

Ranges :10 mbar …... 25 bar

Differential :Fixed / Adjustable

Accessories :Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket

Cable Entry :PG13.5 (std)

Options :3/4 ET / 1/2'' NPT / DIN Conn/ 4pin / 7pin connectors Single / Double Compression Gland- Weather proof - Brass / SS

Features :Fixed/Field Adjustable (External)/Differential Adjustment-External/Internal

Accuracy :± 1% / CL 1

Repeatability :±0.5% /CL 0.5, On Raising / On Falling

Mounting :Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure :Die Cast Aluminium - Flame Proof- IIA IIB IIC T6 ZONE 1 & 2

Wetted Parts :Bottom Body, Diaphragm

MOC :SS316/ Monel / Inconel / PTFE

Process Connection :1/4" BSP(F) - Standard

Options :3/8",/1/2"-BSP / NPT

Max. Process Temp. :150°C

Ambient Temp. :-20 .. 65°C

Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard : Micro Switch with silver contact

Micro Switch :Low/High Dead Band, Hermetically/Environment Sealed /Gold Contact

Ranges :10 mbar …... 25 bar

Differential :Fixed / Adjustable

Accessories :Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket, Diaphragm Seal, Syphon, Snubber, Cooling Tower

Cable Entry :3/4 ET / 1/2'' NPT Double Compression Gland- Flame Proof - Brass / SS

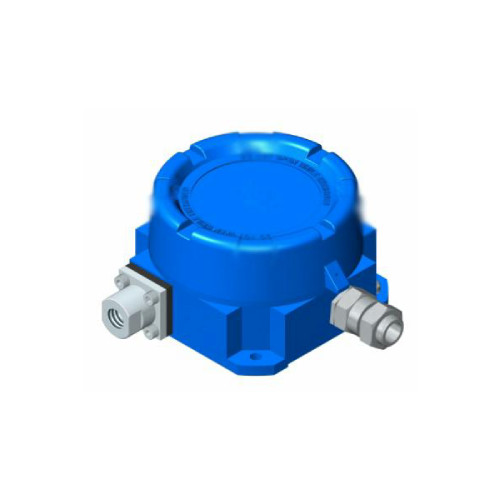

Features :Fixed/Field Adjustable (External)/Differential Adjustment-External/Internal

Accuracy :± 1% / CL 1,

Repeatability :±0.5% /CL 0.5, On Raising /On Falling

Mounting :Bottom / Back Panel / 2"pipe Mounting Bracket

Enclosure :Die Cast Aluminium - Flame Proof- IIA IIB IIC T6 ZONE 1 & 2

Wetted Parts :Bottom Body, Piston

MOC :SS316/ Monel / Inconel / PTFE

Process Connection :1/4" BSP(F) - Standard

Options :3/8",/1/2"-BSP / NPT

Max. Process Temp. :150°C

Ambient Temp. :-20 .. 65°C

Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC -Standard : Micro Switch with silver contact

Micro Switch :Low / High Dead Band, Hermetically /Environment Sealed /Gold Contact

Ranges :Above 25bar …... 250 bar

Differential :Fixed / Adjustable

Accessories :Mounting Bracket with bolt - Steel Plated /2'' Pipe mounting bracket, Diaphragm Seal, Syphon, Snubber, Cooling Tower

Cable Entry :3/4 ET / 1/2'' NPT Double Compression Gland- Flame Proof - Brass/SS

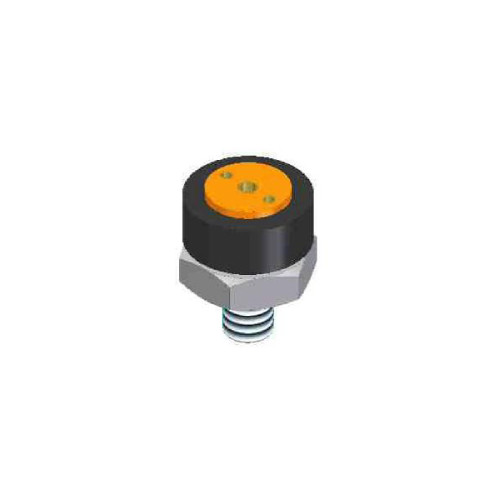

Features :Fixed / Field Adjustable

Accuracy :± 2% / CL 2%

Repeatability :± 2% /CL 2

Ranges :1…..160 bar

Mounting :Bottom

Wetted Parts :Bottom Body , Diaphragm / Piston

MOC :SS304/SS316

Process Connection :1/4"BSP(M)

Options :Option: 1/8" / 3/8" / 1/2"- BSP / NPT / MM

Max. Process Temp. :100°C

Ambient Temp. :-20 .. 150°C

Switch Type & Rating :1SPST, 5A / 220 VAC - Contact Type

Switch Type :NO / NC
